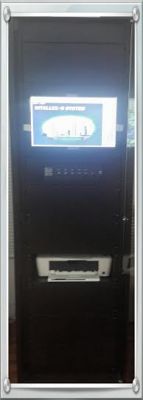

INTELLEX-II FIRE CONTROL PANEL (R-TYPE)

Price: 0 vnđ

    Model No: HIP 600
  • Manufacturer: KOREA
  • Status: Out of stock
MODEL NO HIP600
INPUT VOLTAGE AC220V, 50 / 60Hz
INSTALLATION NETWORK STANDING TYPE
TYPE ADDRESS CONTROL PANEL/ GR TYPE
POWER DC24V 15A
STANDBY POWER DC24V 7AH ( DC12V 7AH x 2EA )
MAXIMUM LOOP MAX.32 LOOP (IN 16,256 / OUT 16,256 CCT)
MODULE ACCESS UNIT 1 LOOP/ 127EA ( IN 508 ADD / OUT 508 ADD )
NETWORK ACCESS UNIT UNLIMITED
COMMUNICATION METHOD  MODULE : POLLING ADDRESS/ CONTROL PANEL : TCP/IP
EMERGENCY BROADCAST INDEXATION TOTAL 100,000 CASE
ENVIRONMENT -10°C ~ 50°C / 95%
COLOR BLACK / 5Y 7/1
PRODUCT SIZE 600W x 2000H x 650D
